Hexagonal Mesh PVC Gabions Coated Galvanized Gabion With 3.0mm To 4.5mm Mesh

प्रमाणन
अच्छी गुणवत्ता gabion जाली मशीन बिक्री के लिए
We got three machines form KONSON,the machine is good quality and they provide service of installation and debugging.

—— Hassan Fehmi from Turkey

I imported 80,000 sets gabion boxes.The products and marketing team are both excellent.The gabion got a good mark in quality test.

—— Soriane Morchedi from Algeria

मैं अब ऑनलाइन चैट कर रहा हूँ

Hexagonal Mesh PVC Gabions Coated Galvanized Gabion With 3.0mm To 4.5mm Mesh

चीन Hexagonal Mesh PVC Gabions Coated Galvanized Gabion With 3.0mm To 4.5mm Mesh आपूर्तिकर्ता

बड़ी छवि :  Hexagonal Mesh PVC Gabions Coated Galvanized Gabion With 3.0mm To 4.5mm Mesh

उत्पाद विवरण:

Place of Origin: Jiangsu, China
ब्रांड नाम: Konson
प्रमाणन: CE, ISO9001, SGS, ASTMA, EN, BS standard.
Model Number: KS-PVC-Gabion

भुगतान & नौवहन नियमों:

Minimum Order Quantity: 1000 sqm
मूल्य: Discuss in mail
Packaging Details: weave bag,flat bundle,binding with steel strape or strands,some rolls.as your design.
Delivery Time: 10 days for 1x40 feet FCL
Payment Terms: L/C,T/T
Supply Ability: 12000 sqm per day
Contact Now
विस्तृत उत्पाद विवरण

Hexagonal Mesh PVC Gabions Coated Galvanized Gabion With 3.0mm To 4.5mm Mesh Size



PVC coated galvanized gabion is the gabion which are woven by the hexagonal mesh, the diameter thickness depends on the mesh size, the diameter is between 2.0mm to 4.0mm if the material is zinc coated, while the diameter will be 3.0mm to 4.5mm if the material is PVC-coated wire, the selvage wire diameter usually is one gauge thicker than the body wire diameter.

PVC coated galvanized gabion specification:

mesh(mm)

wire(mm)

wire(PVC)/inner/outside(mm)

biggest width (mm)

60X80

2.0-2.8

2.0/3.0-2.5/3.5

4300

80X100

2.0-3.2

2.0/3.0-2.8/3.8

4300

80X120

2.0-3.2

2.0/3.0-2.8/3.8

4300

100X120

2.0-3.4

2.0/3.0-2.8/3.8

4300

100X150

2.0-3.4

2.0/3.0-2.8/3.8

4300

120X150

2.0-4.0

2.0/3.0-3.0/4.0

4300

Hexagonal Mesh PVC Gabions Coated Galvanized Gabion With 3.0mm To 4.5mm Mesh

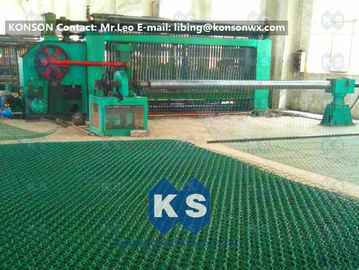

In Konson Workshop:

Hexagonal Mesh PVC Coated Galvanized Gabion With 3.0mm To 4.5mm Mesh Size
